New Sme 3009 3012 EIA\ EMT socket
↵

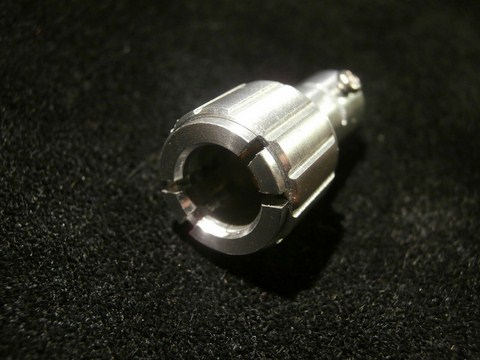

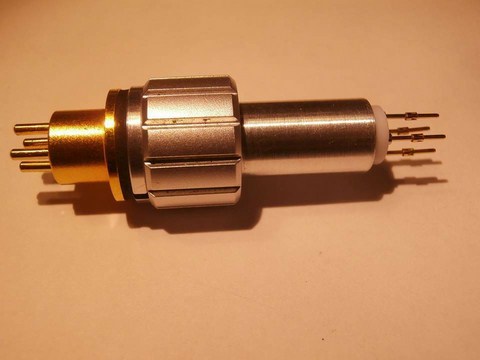

At last Audiosilente is pleased to introduce the all new aluminum headshell socket connector for all SME detachable headshell tonearms fitted with azimuth adjustment slot
(not suitable for the "R" version and Sme 3009 improved ).

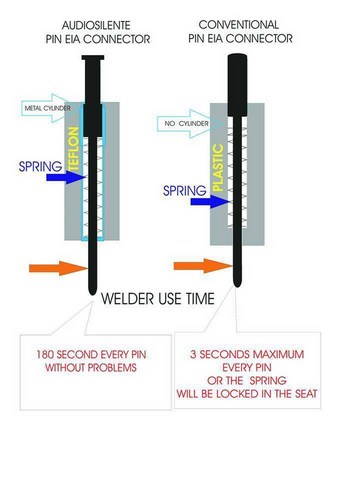

Every pin is made of 24-carat gold plated brass and encased in a life extending metal protection for improved spring resistance durability (no more accidental melting of the plastic hub caused by prolonged exposure to soldering high temperatures).
The overall weight is 4.7 grams, 0.5 grams heavier than the original.
The overall weight is 4.7 grams, 0.5 grams heavier than the original.
Collar bore is 8.38 8.42 mm
We also offer individual pin replacement, in case our connector should need servicing.
Please make sure
the collar bore of your arm is
8.38-8.42 mm before ordering.

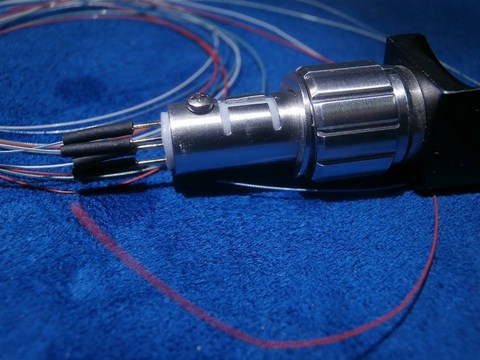

new socket sme 3009 is sold with or whitout Wires Awg 36 copper silver plated , teflon coated
please ask the version that you desire. Please specify in the order notes if you would like the wires already soldered at no further cost.
Engineered manufactured and assembled in Rome - Italy.
This version accepts both standard EIA and EMT headshells.
The conversion is made by removing the stop screw and rotating the collet accordingly
